DSP & LCD control panel PINOUT

[Yepez]

Hello!!

Is it possible to someone to provide me the PINOUT for the DSP controller (AW608) and the LCD control panel, because I lost the cable, I was trying to make an extension cable, and when I went to the electronics shop i didn't realize I left the cable inside the TAXI. (Yes I know, I am an idiot )

Actually I don't need the pinout, I just want to know how to re do the cable (Allready bought the cable and the matching connectors).

Is it just a direct connection? I mean Pin 1 in the DSP goes to the Pin 1 in the LCD?

DSP Side................................................LCD Side
-------------------CABLE-----------------------
Pin 1 «----------------------------» Pin 1
Pin 2 «----------------------------» Pin 2
Pin 3 «----------------------------» Pin 3
Pin 4 «----------------------------» Pin 4
Pin 5 «----------------------------» Pin 5

Maybe some one can take a picture to the cable (both terminal connectors)
Please someone help me.. !! Thanks in advance..

[SScnc]

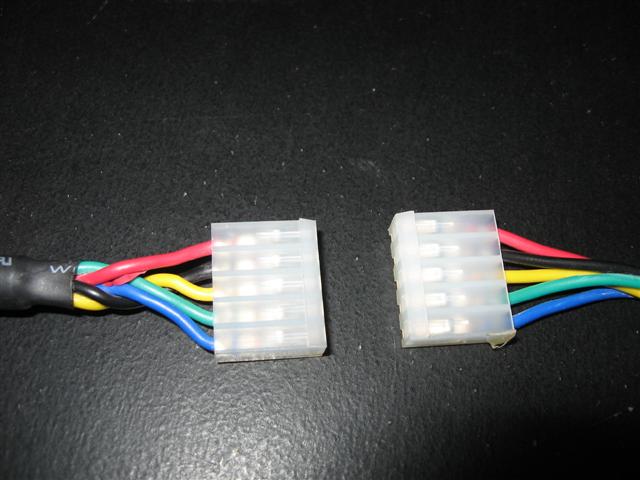

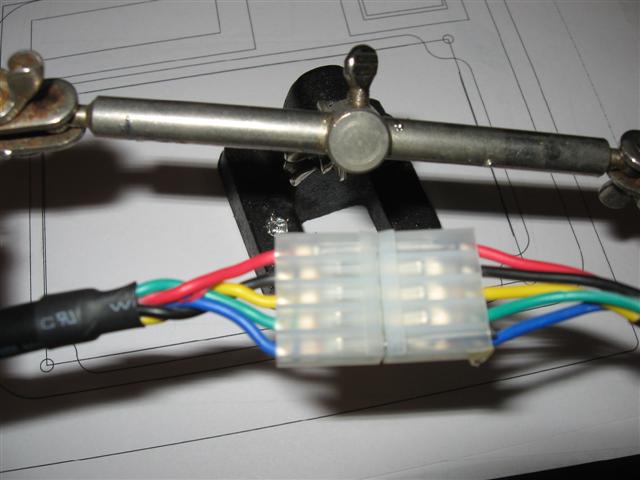

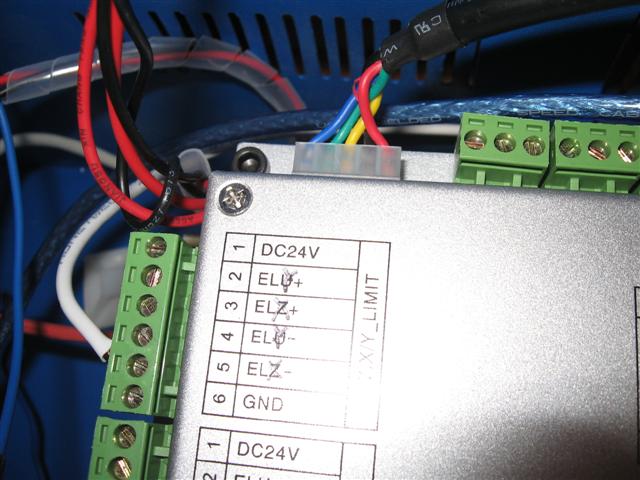

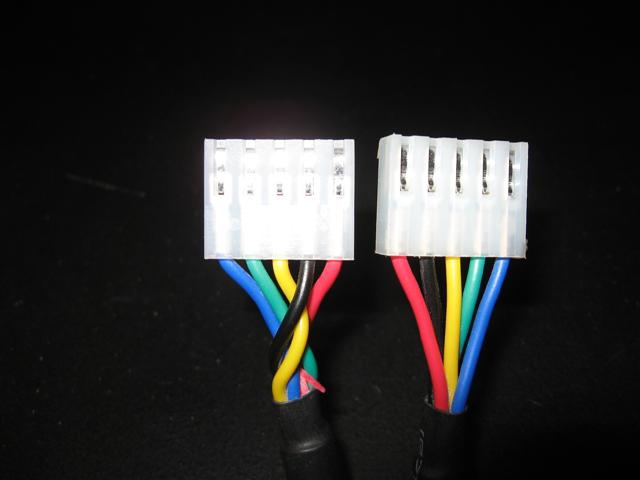

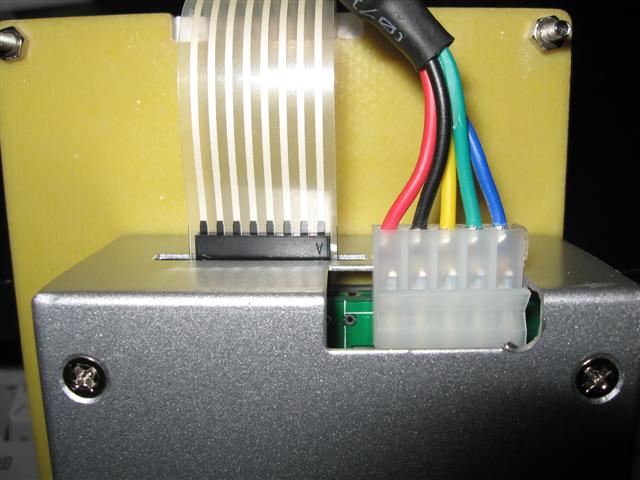

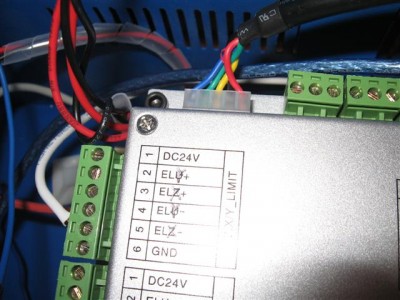

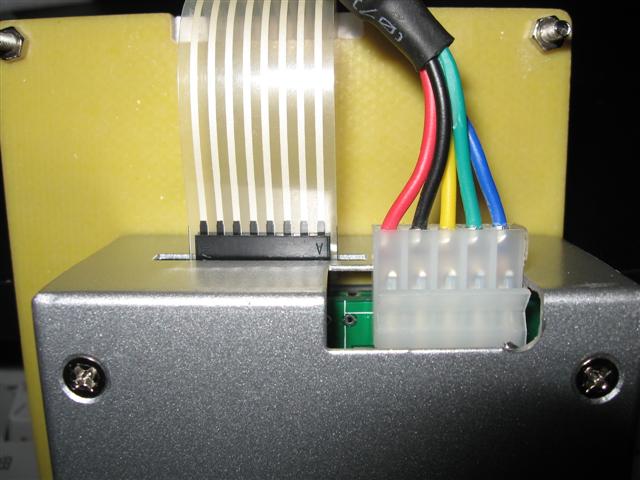

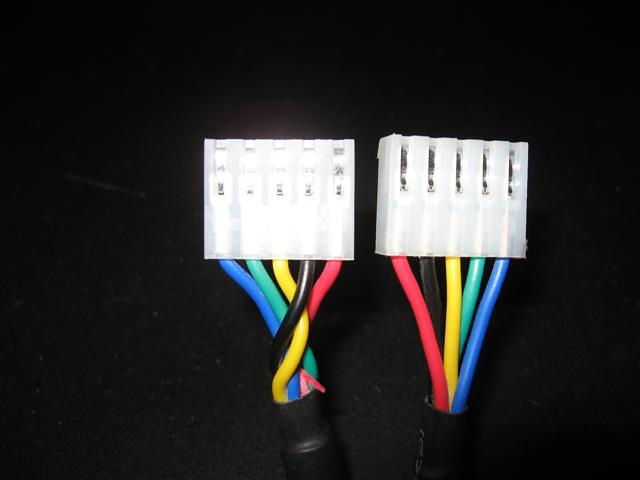

Here ya go...

[Tech_Marco]

If you can't make it. let me know and I'll send you another one

Christmas gift

Marco

[Yepez]

Thank you very much!!

Allready did my new cable, and it works great!! THANKS!!

By the way, How long this cable can be without some kind of signal degradation?, I make mine 3 meters long? Is this OK?

Thanks again SScnc for your kind support, and thanks Tech_Marco for your great offer.
