AWC 608 card, PS, 20-40-60w PS and MLE-40 FSL Laser upgrade

[Craig_Johnson]

Order numbers: 201482, 201566, 201748

I managed to get the controller language switched to English.

The controller is working and recognized by the computer thru USB3 port.
The spotting light is working on the laser

The X and Y axis do not respond to commands from LaserCad or the key pad. (I have no Z on the laser)

I'm assuming that the dip switches on the stepper motor controllers need to be changed?

The laser does not test fire. I need documentation on the two power supplies I purchased also.

[Tech_Marco]

All power supply share the sam connection
Check on the connection diagram we sent you
You need to configure the mirco step and current setting on your motor drivers. That is a MUST and need to do it right before the X,Y can move

[Craig_Johnson]

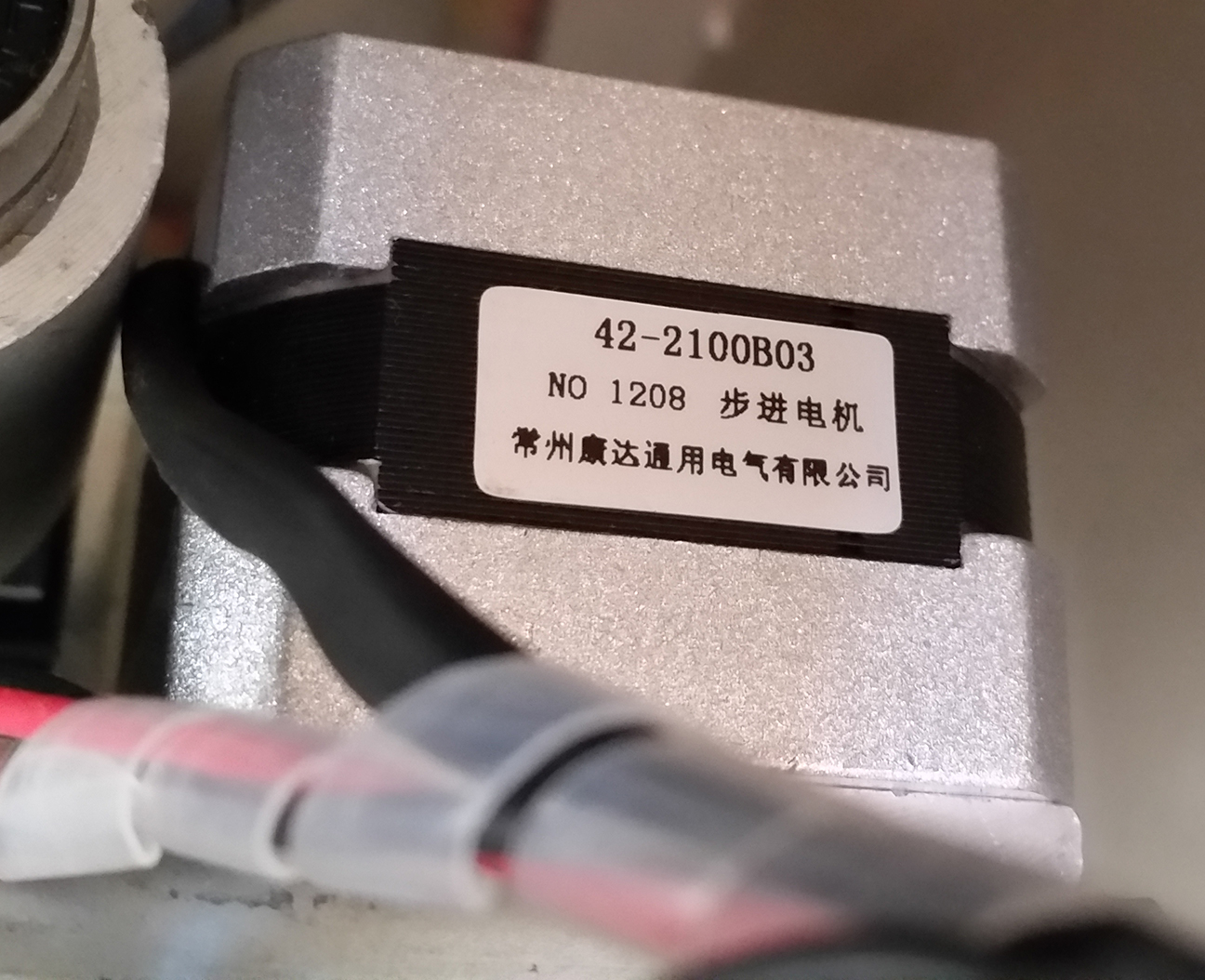

Here is a photo of one of my x/y motors. What dip switch settings do I need to set?
