2012 (AWC-608B) Laser Controller engraving problems

[ngraving]

Hi Marco,

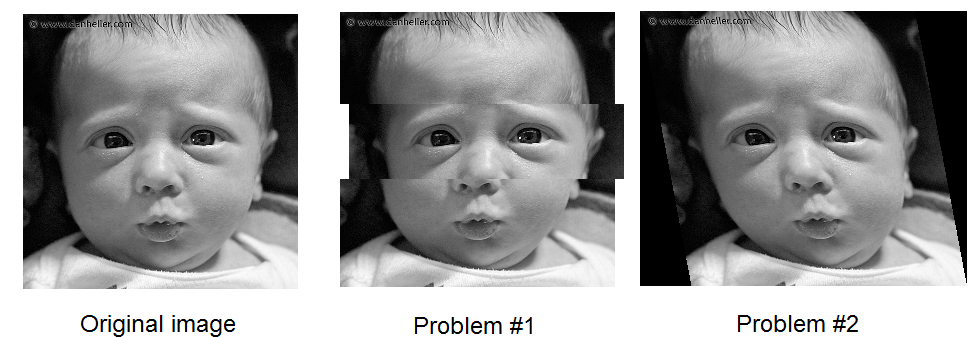

Time ago we bought AWC-608B DSP boards from you. The boards are installed in different machines and works fine, but there is a common problem when engraving some images. Please, see the attached picture.
This is a common problem in AWC-608 DSP boards. Please, could you tell me the cause or how to fix it?.

Software version: Lasercad 6.46

Many thanks

[Tech_Marco]

I don't know what could be the cause for Problem #1. But for Problem #2, there are three possibility:
1) Engraving speed was set too fast
2) Rising edge/ Falling edge setting on LaserCad.
3) Motor or mechanical issue


Marco

[ngraving]

Hi Marco,
Assuming that the Rising edge/ Falling edge setting on LaserCad is wrong, the problem #2 would appear all the time or sometimes?

Many thanks

[Tech_Marco]

Once it is fixed, you no longre need to do it again
It is motor driver type issue. Very common.

After setting is changed, make sure to hit `Reset `button on the LCD unit to reflect the change

Marco

[Russ]

Hi,
We had something like that a while ago, I seem to remember it was an extended USB lead problem, controller would beep believed happy but data issues and NO error checking carried out, worth trying a short known lead perhaps...

[ngraving]

Hi Russ,
Maybe is a electrical noise issue...
