There are three models all share the same manual:
1) Standard supports dual alarm
2) Support RS485 + model(1)
3) Support data transmission (0-20mV) + model(1)
Update: Thank you for the great work from W. Robert Ashurst, Ph.D.Associate Professor, Auburn University
He worked out a communication interface by using MathLab for data acquisition.
See his post on Mathworks.com
http://www.mathworks.com/matlabcentral/ ... 485modbus-

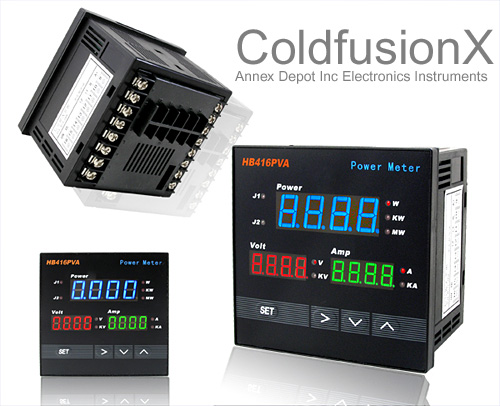

JLD416 Triple Display AC Power/Watt meter
-
- Site Admin
- Posts: 32
- Joined: Sun Nov 16, 2008 10:09 pm
- Contact:
JLD416 Triple Display AC Power/Watt meter
- Attachments
-
- JLD416PV_RS485.pdf
- RS485 parameters
- (210.63 KiB) Downloaded 616 times
-
- JLD416PVA.zip
- MathLab programming
- (408.47 KiB) Downloaded 539 times
-
- HB416PVA-RevB_.pdf
- Manual
- (300.38 KiB) Downloaded 1882 times
