erroneous measurements

[Javier]

hello good morning, my problem is that awc 608 lasercad or not recognized measures in millimeters. I have to do a conversion or rule of three millimeters adjusting the measures of the machine, which are these conversions: 100mm are 58.82 in lasercad, 170mm are 100 in lasercad, and so I always cut something in the machine, which give me solution?

[waltfl]

Hi javier
this is a probleme with adjusting the machine with a test square .make a square in laser cut set it to cut 15% and 80mm/s speed then cut it

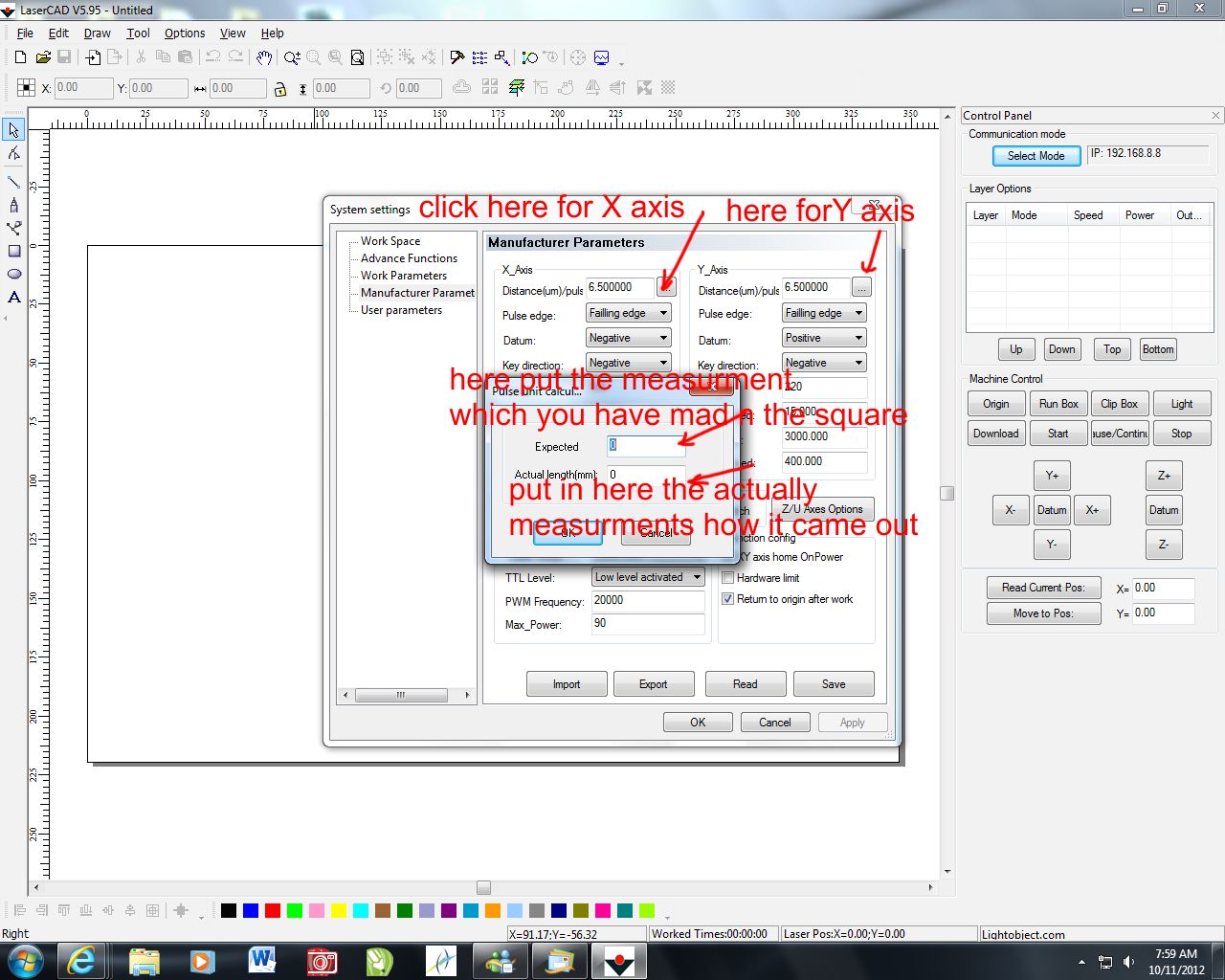

then follow the picture
greetings
walt

hello good morning, my problem is that awc 608 lasercad or not recognized measures in millimeters. I have to do a conversion or rule of three millimeters adjusting the measures of the machine, which are these conversions: 100mm are 58.82 in lasercad, 170mm are 100 in lasercad, and so I always cut something in the machine, which give me solution?

[Javier]

Thank you very much Problem Solved
