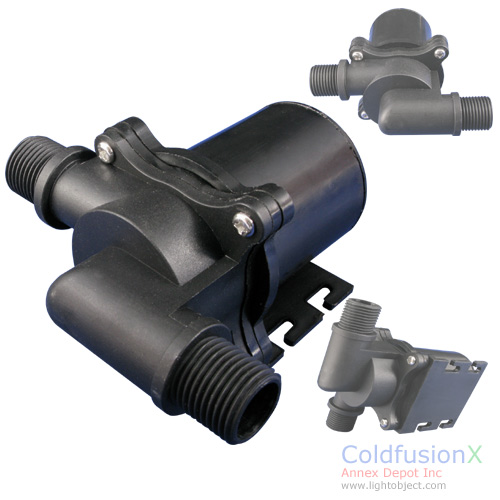

EWP-D50C2440T DC24V Brushless Water Pump

Postby admin » Wed Aug 31, 2011 3:26 pm

Specification
• Power: DC24V
• Current: 2.3A@24V
• Output: 35L/m (565 gal/hr)
• Vertical delivery: 4m (13ft)
• Self Prime: No
• Motor: DC 2 phase coil
• Power: 55Watt
• Speed control: None
• Intake: G1/2 (1/2")
• Outlet: G1/2 (1/2")
• Life span: > 20,000hrs @ 1600rpm~10,00rpm
• Noise: << 39dB
• Water Temp: 70'C/ 176'F (max)
• Operating Temp: <50'C
• Size(L*W*D): See "More images for the exact dimension"
• Weight (net): 16.0oz
Attachments
EWP-D50C2440T_Manual.pdf
(127.79 KiB) Downloaded 361 times
