Modbus Register Map for JLD634

RayG
Posts: 6
Joined: Mon Jul 18, 2011 8:45 am

Modbus Register Map for JLD634

Postby RayG » Mon Jul 18, 2011 9:53 am

Hi All,

I'm looking at using the JLD634 to control a heat treatment furnace, I'd like to load the temperatures, times, etc via modbus.

Does anyone know where I can get a register map for the JLD634?

Regards
Ray

RayG
Posts: 6
Joined: Mon Jul 18, 2011 8:45 am

Re: Modbus Register Map for JLD634

Postby RayG » Mon Jul 25, 2011 9:21 pm

Hi All,

The only thing I've been able to establish, is that the modbus documentation is contained on the CD that is supplied with the device, so I've ordered the JLD634 on that basis.

fingers crossed.

Regards
Ray

RayG
Posts: 6
Joined: Mon Jul 18, 2011 8:45 am

Re: Modbus Register Map for JLD634

Postby RayG » Mon Aug 08, 2011 9:53 am

Hi All,

I have translated the Modbus Comms manual for the JLD634 XMT63X

The attached pdf's are the chinese version, and the first draft of the English

I'll be updating the translation and expanding on the examples in due course.

Regards
Ray
Attachments
XMT63X series instrument protocol-20080523_chinese.pdf
The Original Chinese Modbus Manual
(401.47 KiB) Downloaded 311 times
XMT63X_Modbus_Protocol_English_Version01.pdf
English XMT63X Modbus Manual
(54.35 KiB) Downloaded 427 times

Tech_Marco
Posts: 4344
Joined: Mon Jun 15, 2009 3:00 pm

Re: Modbus Register Map for JLD634

Postby Tech_Marco » Mon Aug 08, 2011 10:16 am

Wow, great job Ray!!
Let me know what else I can do for you to compensate your effort. If you need to buy things in near future, let me know and I'll give you a discount

Thanks
Marco

RayG
Posts: 6
Joined: Mon Jul 18, 2011 8:45 am

Re: Modbus Register Map for JLD634

Postby RayG » Mon Aug 08, 2011 9:08 pm

Hi Marco,

Thanks, for the offer, much appreciated.

I'll be posting some linux code to talk to the JLD634 I've got it working and reading/writing registers, but there are a few details that don't make sense at the moment..

Regards
Ray

guillame
Posts: 3
Joined: Mon Sep 12, 2011 11:48 am

Re: Modbus Register Map for JLD634

Postby guillame » Mon Sep 12, 2011 12:07 pm

Ray,
Thanks for the manual on the protocol .

marco,

I recieved the JDL634 and it s controlling.
I installled a prolific RS485/USb Vista
COnverter. and I can see its port is open
I am using ProfileUpLoader software but i cant get this software to see the
JDL634. I set the id Channel Address of the JDL634 to 1,
but i cannot communicate or see the Controller.

Is there a simple hardware or software test that I can do which will tell me the JDl RS485
A/B port of the RS485 are working.

I looked at the Driver/application disk that came with the controller
and ran the XMT634 exe file called XMT63x_10e and it runs but the UI is in Chinese?

Bill Byrne

RayG
Posts: 6
Joined: Mon Jul 18, 2011 8:45 am

Re: Modbus Register Map for JLD634

Postby RayG » Mon Oct 03, 2011 8:02 am

Hi Bill,

Apologies for slow reply, I don't check back here as often as I should.

Check the following..

1. Polarity of the RS485 connections, I had to trace back to the chip to confirm which was which. + is terminal 7 and - is terminal 8
2. Baud Rate, I'm using 9600, make sure you have baudrate configured correctly at both ends.
3. Network Address, sounds like you've already checked this anyway. Make sure the PC software is also address 1.

Does the software allow you to do something basic like query the present value (PV)?

If you have cro, look at the network data, and see if the JLD is sending a response, and check the levels look ok.

Can't think of anything else... just now.
Regards
Ray

guillame
Posts: 3
Joined: Mon Sep 12, 2011 11:48 am

Re: Modbus Register Map for JLD634

Postby guillame » Wed Oct 26, 2011 11:45 am

Ray,

Thanks for your help.
You mention CRO, is this a software package/

Also are you aware of any Visual basic software which handles communications to
a MODBUS RS485 product like the JLD634

etrmedia
Posts: 15
Joined: Mon Jan 23, 2012 5:36 pm

Re: Modbus Register Map for JLD634

Postby etrmedia » Fri Feb 17, 2012 11:52 am

RayG, how is your linux code project working for the modbus interface?

richiem
Posts: 270
Joined: Mon Jan 03, 2011 3:47 pm
Contact:

Re: Modbus Register Map for JLD634

Postby richiem » Sat Feb 18, 2012 9:12 am

@guillaume -- CRO = cathode ray oscilloscope, or in ordinary parlance, a scope. Most useful tool there is in electronics.

RayG
Posts: 6
Joined: Mon Jul 18, 2011 8:45 am

Re: Modbus Register Map for JLD634

Postby RayG » Mon Feb 20, 2012 3:46 am

etrmedia wrote:RayG, how is your linux code project working for the modbus interface?


Hi etrmedia,

I have the heat treatment furnace control running programming two JLD634's from a mysql database, with a web interface for monitoring.

One JLD634 is for the main furnace, the second one is for the tempering furnace, that i'm yet to build.

Here's the control enclosure

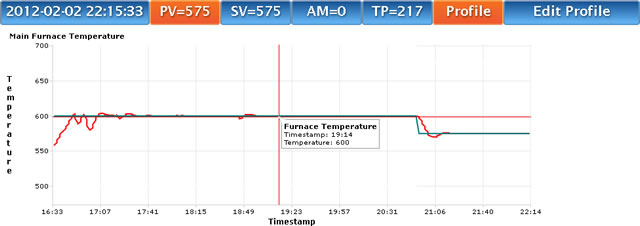

A screen shot, this one is before the tempering furnace code was added

And of course a shot of the inside of the furnace.. :)

The code needs to be tidied up before I'd be happy to publish it.

Regards
Ray

PS thanks Richiem for answering the CRO question, I should check back here more often.

etrmedia
Posts: 15
Joined: Mon Jan 23, 2012 5:36 pm

Re: Modbus Register Map for JLD634

Postby etrmedia » Mon Jun 25, 2012 11:54 am

Well, it's been four months since we last heard from you. Any progress on the linux code?

etrmedia
Posts: 15
Joined: Mon Jan 23, 2012 5:36 pm

Re: Modbus Register Map for JLD634

Postby etrmedia » Tue Nov 12, 2013 8:28 pm

...and more than a year since then... Any progress?
