need help how to wire DC 24V 15A Switching Power Supply

pluto26
Posts: 6
Joined: Sat Feb 26, 2011 11:07 am

need help how to wire DC 24V 15A Switching Power Supply

Postby pluto26 » Thu Oct 13, 2011 6:06 pm

I need help connecting the power cord to the power supply.

I also need to understand the other terminals on the power supply to the 4 axis CNC Stepper Motor Controller ( TB6560) There seems to be NO documentation on the power supply and the terminals for setup.

Any help would be greatly appreciated/ :D

Tech_Marco
Posts: 4382
Joined: Mon Jun 15, 2009 3:00 pm

Re: need help how to wire DC 24V 15A Switching Power Supply

Postby Tech_Marco » Thu Oct 13, 2011 8:47 pm

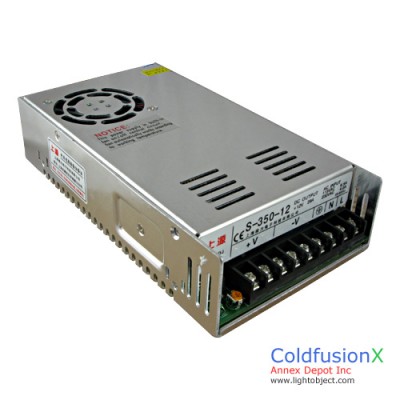

It's pretty simple.

N= Natural
L = Live
Earth = Ground

There are 3 sets output terminals, three V+ and three V-. Any pair will get you 24V DC

Marco
Attachments
